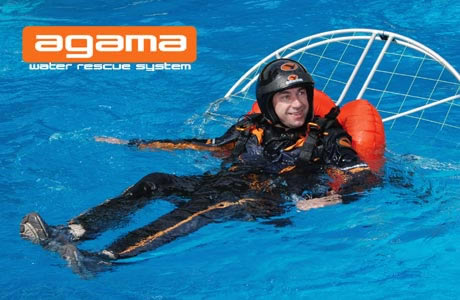

Agama Water Rescue
|
•
Rapidly inflates. • Simple installation • No aerodynamic resistance. • Perfectly balanced positioning in the water. • Pilot remains in the position on the back with the head above the water surface even when loosing consciousness – proven by practical tests • Total weight of the system 650 g. • Displacement of 300 N was calculated for a load of 200 kg in the water.

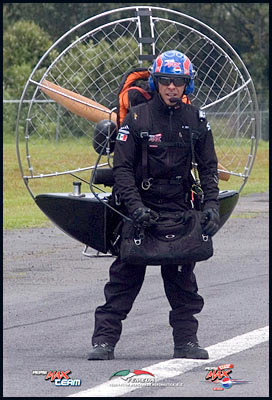

Fernando Iriate |
•
Developed especially for
the rescue of the paramotor when landing on the water.
RechargeContents
•
Yellow trigger sensor
•
Material was developed and tested for both fresh water and salt water
•
Can be used repeatedly, simple replacement of the cartouche and trigger
pins.
•
The trigger mechanism used in the design was supplied by a well known
prestigious supplier.
•
Several types, they differentiate by the attachment points for various
types of paramotors.
•
Rapidly inflates.
•
Simple assembly on the assembled paramotor.
•
Small packaged size, the pilot does not notice it as a burden or
aerodynamic resistance.
•
Perfectly balanced positioning in the water.
•
Pilot remains in the position on the back with the head above the water
surface
•
Total weight of the system 650 g.
•
Displacement of 300 N was calculated for a load of 200 kg in the water.
CO2
Cartridge Installation (Do this before installation of AGAMA to
paramotor)
1.
Open the velcro on the right bottom side of AGAMA rescue system.
2.
Screw in the CO2 cartridge
3.
Close carefully the velcro around the automatics.
4.
Now is your AGAMA rescue system ready to installation to paramotor.
• CO2 Cartridge
AGAMA Installation
.
1.
Attach the AGAMA rescue system to the paramotor between the seat and the
frame of the paramotor so that the bead will be on the right side
down. PlanetPPG recommends placing the manual activation inside the unit
so that it can not be pulled by accident during flight!
2.
The entire inside border has loops designed for attaching the paramotor.
The fixation points will be where the AGAMA rescue system touches the
solid frame parts of the paramotor. These points must be selected in
such a manner as to prevent any upwards movement of the rescue system
after it is inflated.
3.
Once you choose the fixation point, thread the belt through the loop and
fix it to the frame. In this manner, attach at least 4 fixation
belts. The fixation points should be distributed symmetrically.
4.
Consider placing the manual inflation inside the AGAMA to prevent
accidental deployment
5.
Carry out a test for the correct attachment as follows: lift up the
paramotor while holding the AGAMA rescue system on its upper part.
The system must not move upwards and the paramotor must not be released.
Automatic Activation
Water rescue system is inflated within 3
seconds from the first contact with water. Do not inflate orally except
when testing out of water. Use one 60 g CO2
gas cylinder.
Operated by the pilot‘s hand, within
easy reach. Only activate if rescue system is deflated. Use one 60 g CO2
gas cylinder.
Pull orange toggle to inflate.
To Deflate
Remove oral inflation tube
cap. Insert nipple into valve and hold it there. Apply gently pressure
to corpus and deflate. Replace cap after deflation.
Cleaning Instruction
Wash after use
in fresh warm water using a mild detergent only. Do not machine wash,
dry clean or use stain removers.
Important
• The system
will not work until it is fully inflated.
• Use only one 60g CO2
gas cylinder.
• Do not partially inflate orally and then use CO2
cylinder.
• Before every use inspect your gas inflation rescue system. In case of
a severedrop or signs of deterioration contact your local approved
service station.
• Store in dry place.
